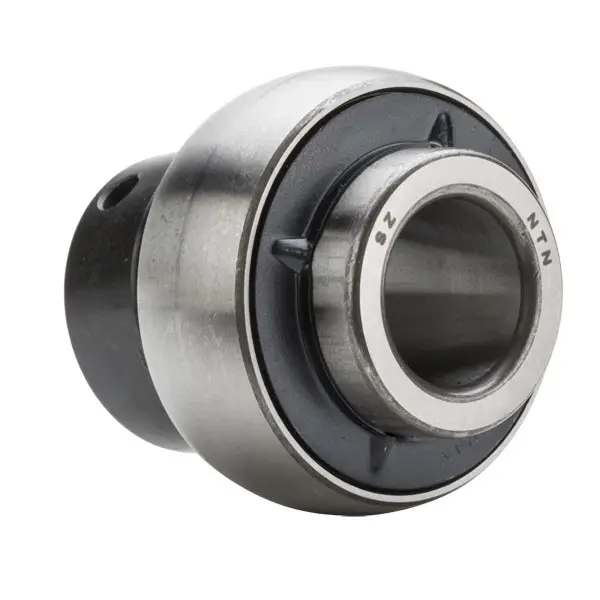

NTN SES212
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Stainless Steel
Ball Material
Steel
Limiting Speed - Grease
1900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Locking Device
Eccentric Locking Collar
Lubrication
Non-Relubricatable
Collar Number
EL212
Basic Outer Ring
212
Static Load Rating
31500 N
Dynamic Load Rating
41000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

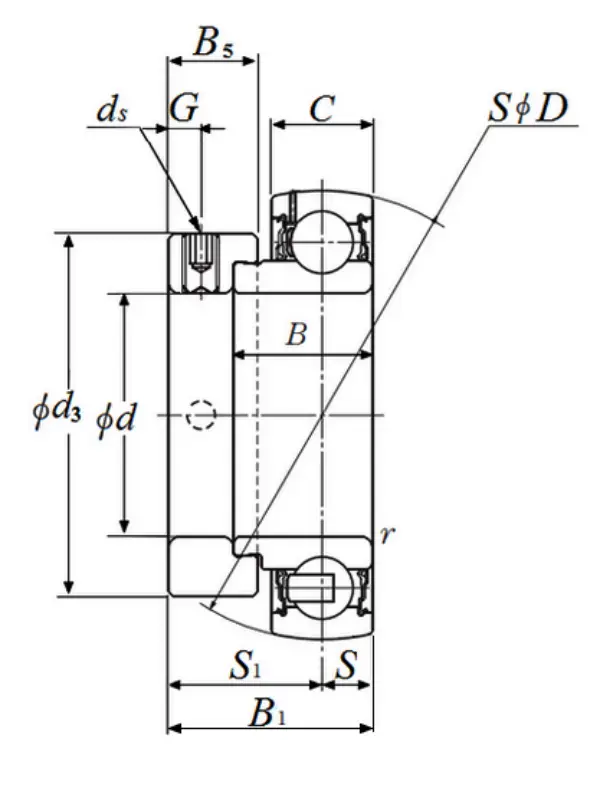

Dimensional Specifications
d
60.000 mm
D
110.000 mm
C
22.000 mm
B
37.100 mm
B1
53.100 mm
r
1.000 mm
ds
M10x1.25
G
8.000 mm
d3
84 mm
B5
22.3 mm
S1
42.100 mm
S
11.000 mm
