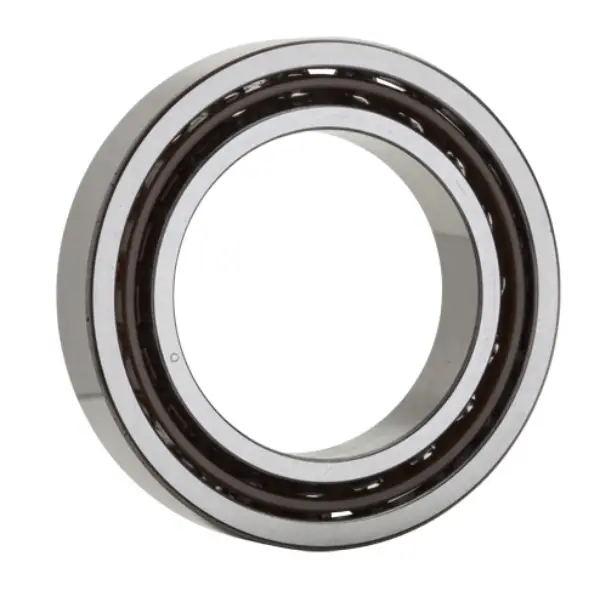

NTN SF06A24
Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
None
Seal Material
None
Precision
Standard
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
20700 N
Dynamic Load Rating
20700 N
Enclosure
Open
Weight
0.348 kg
Operating Temperature Range
-40 to 120 ºC

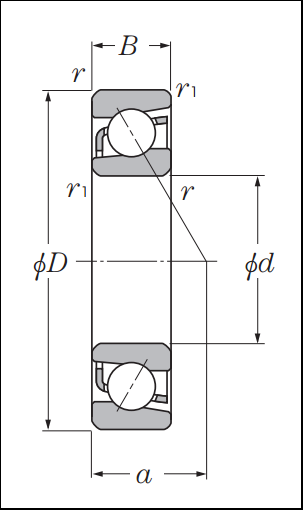

Dimensional Specifications
d
28.000 mm
D
72.000 mm
B
18.000 mm
r
1.100 mm
Contact Angle
30 º
