NTN SF2046DB/G10UP-1
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Ball Material
Steel
Precision
Special Precision
Configuration
Two
Radial Internal Clearance
CN
Enclosure
Open
Weight
2.722 kg
Operating Temperature Range
-40 to 120 ºC

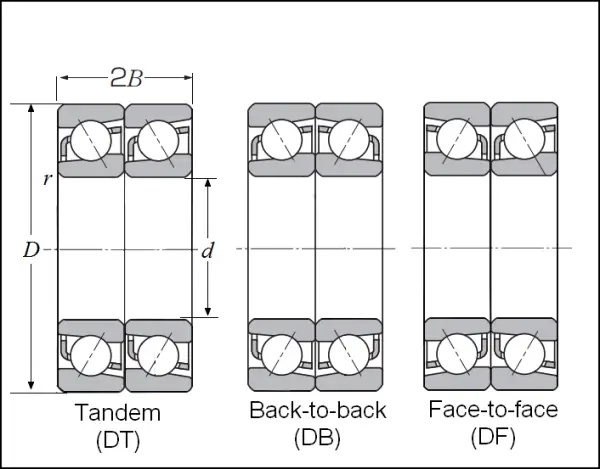

Dimensional Specifications
d
100.000 mm
D
150.000 mm
B
24.000 mm
2B
48.000 mm
r
2.000 mm
Contact Angle
40 º
