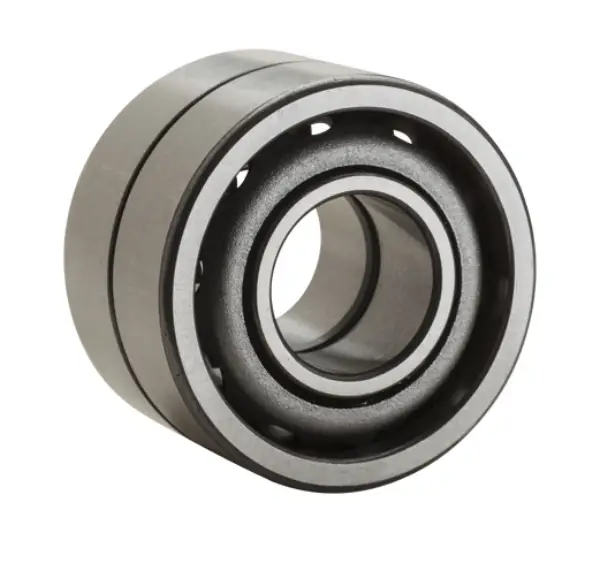

NTN SF3408DB/GMPX1
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
High Strength, 2 piece, Machined
Cage Material
Brass
Ball Material
Steel
Precision
Special (PX1)
Configuration
Two
Preload
Medium
Enclosure
Open
Weight
13.000 kg
Operating Temperature Range
-40 to 120 ºC

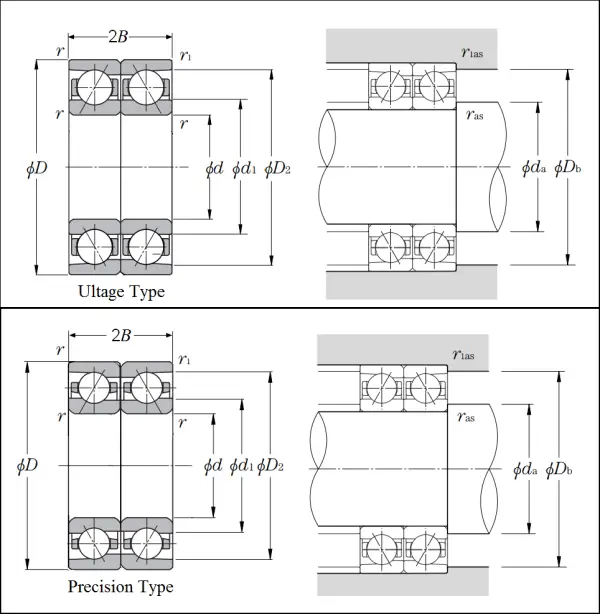

Dimensional Specifications
d
170.000 mm
D
260.000 mm
B
40.500 mm
2B
81.000 mm
