NTN SF4224
Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
None
Seal Material
None
Precision
Standard
Configuration
One
Radial Internal Clearance
NA
Static Load Rating
225000 N
Dynamic Load Rating
170000 N
Enclosure
Open
Weight
4.560 kg
Operating Temperature Range
-40 to 120 ºC

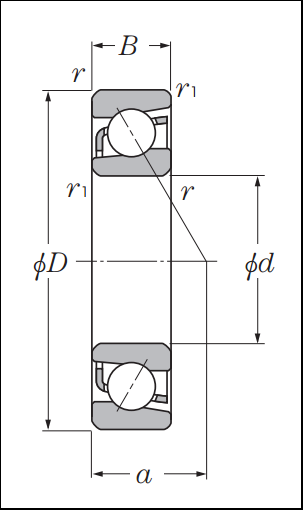

Dimensional Specifications
d
210.000 mm
D
280.000 mm
B
35.000 mm
r
1.500 mm
r1
1.500 mm
