NTN SF4615PX1
Single Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
None
Seal Material
None
Precision
Standard
Configuration
One
Radial Internal Clearance
CN
Enclosure
Open
Weight
5.320 kg
Operating Temperature Range
-40 to 120 ºC

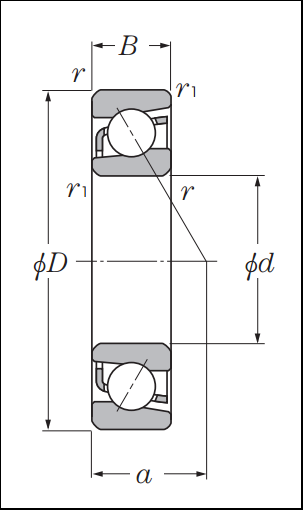

Dimensional Specifications
d
230.000 mm
D
300.000 mm
B
35.000 mm
