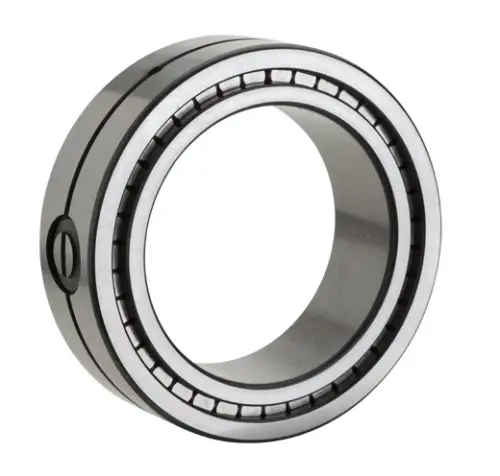

NTN SL01-4910
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Limiting Speed - Oil
4000 RPM
Limiting Speed - Grease
2000 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
83000 N
Dynamic Load Rating
49500 N
Enclosure
Open
Weight
0.282 kg
Operating Temperature Range
-40 to 120 ºC

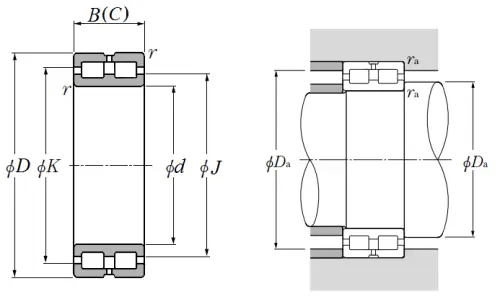

Dimensional Specifications
d
50.000 mm
D
72.000 mm
B
22.000 mm
C
22.000 mm
J
58.000 mm
K
63.000 mm
r
0.600 mm
e (Allowable Axial Move)
1.000 mm
da min
55.000 mm
Da max
67.000 mm
ras max
0.600 mm
