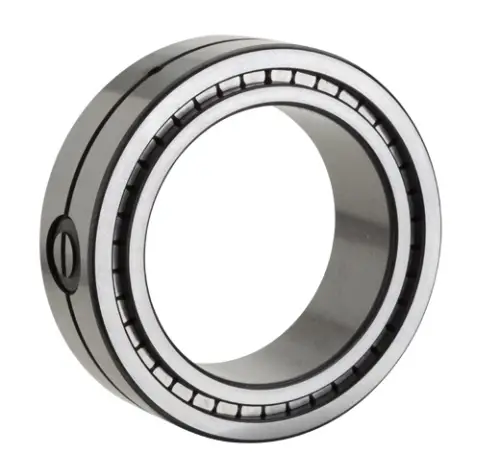

NTN SL01-4912
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Limiting Speed - Oil
3300 RPM
Limiting Speed - Grease
1700 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
136000 N
Dynamic Load Rating
73000 N
Enclosure
Open
Weight
0.445 kg
Operating Temperature Range
-40 to 120 ºC

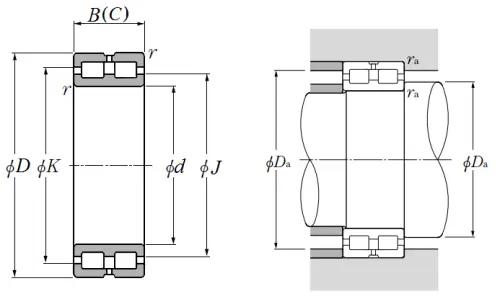

Dimensional Specifications
d
60.000 mm
D
85.000 mm
B
25.000 mm
C
25.000 mm
J
69.500 mm
K
74.500 mm
r
1.000 mm
e (Allowable Axial Move)
1.000 mm
da min
66.000 mm
Da max
79.000 mm
ras max
1.000 mm
