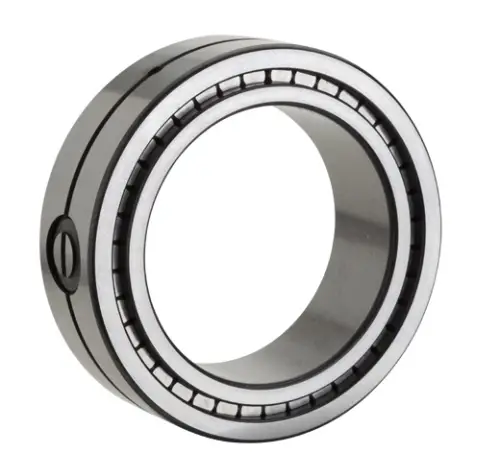

NTN SL01-4920
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Limiting Speed - Oil
2000 RPM
Limiting Speed - Grease
1000 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
400000 N
Dynamic Load Rating
194000 N
Enclosure
Open
Weight
1.936 kg
Operating Temperature Range
-40 to 120 ºC

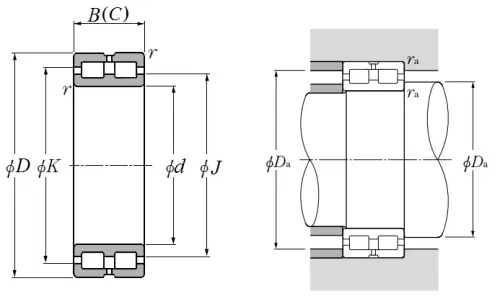

Dimensional Specifications
d
100.000 mm
D
140.000 mm
B
40.000 mm
C
40.000 mm
J
116.000 mm
K
125.000 mm
r
1.100 mm
e (Allowable Axial Move)
2.000 mm
da min
107.000 mm
Da max
133.000 mm
ras max
1.000 mm
