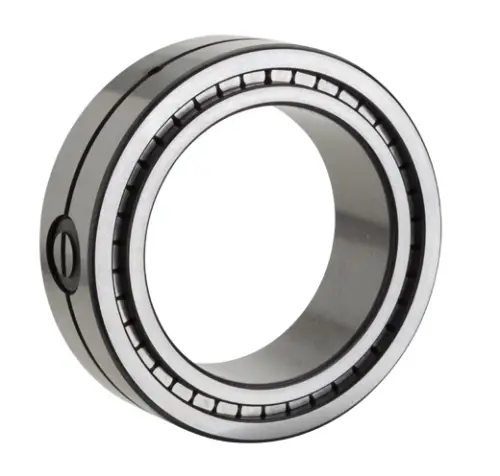

NTN SL01-4922
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Limiting Speed - Oil
1800 RPM
Limiting Speed - Grease
910 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
430000 N
Dynamic Load Rating
202000 N
Enclosure
Open
Weight
2.100 kg
Operating Temperature Range
-40 to 120 ºC

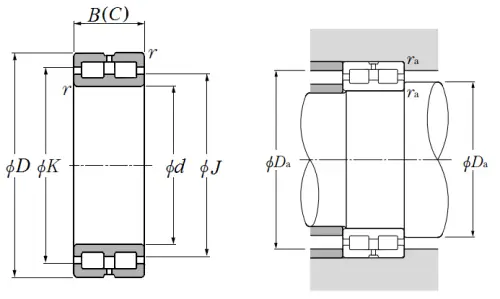

Dimensional Specifications
d
110.000 mm
D
150.000 mm
B
40.000 mm
C
40.000 mm
J
125.000 mm
K
134.000 mm
r
1.100 mm
e (Allowable Axial Move)
2.000 mm
da min
117.000 mm
Da max
143.000 mm
ras max
1.000 mm
