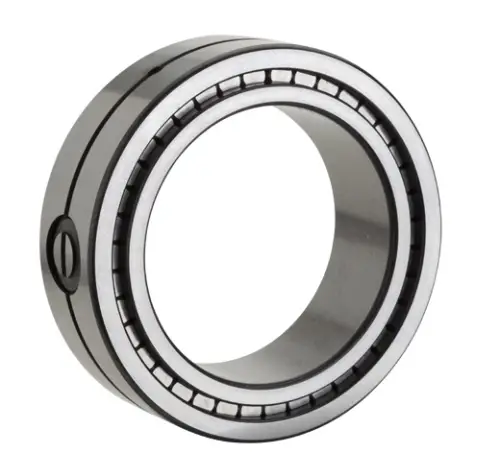

NTN SL01-4926
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Limiting Speed - Oil
1500 RPM
Limiting Speed - Grease
770 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
555000 N
Dynamic Load Rating
262000 N
Enclosure
Open
Weight
3.850 kg
Operating Temperature Range
-40 to 120 ºC

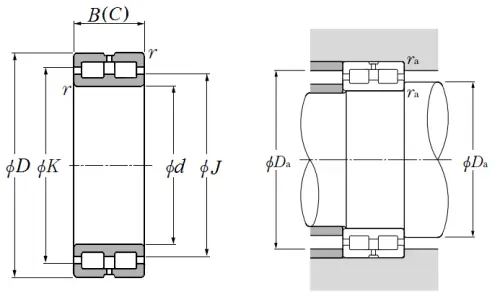

Dimensional Specifications
d
130.000 mm
D
180.000 mm
B
50.000 mm
C
50.000 mm
J
149.000 mm
K
160.000 mm
r
1.500 mm
e (Allowable Axial Move)
4.000 mm
da min
138.500 mm
Da max
171.500 mm
ras max
1.500 mm
