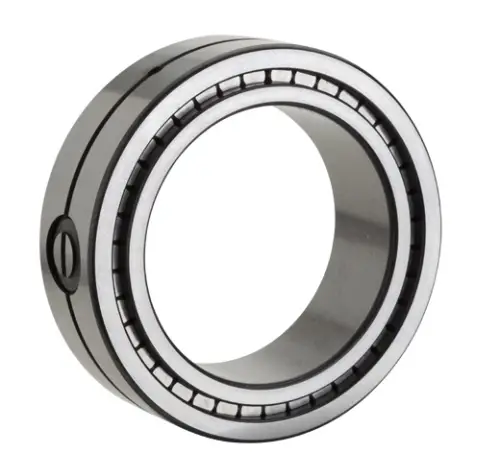

NTN SL01-4930
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Limiting Speed - Oil
1300 RPM
Limiting Speed - Grease
670 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
865000 N
Dynamic Load Rating
410000 N
Enclosure
Open
Weight
6.470 kg
Operating Temperature Range
-40 to 120 ºC

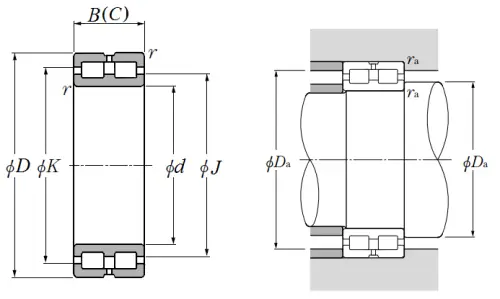

Dimensional Specifications
d
150.000 mm
D
210.000 mm
B
60.000 mm
C
60.000 mm
J
171.500 mm
K
186.000 mm
r
2.000 mm
e (Allowable Axial Move)
4.000 mm
da min
160.000 mm
Da max
200.000 mm
ras max
2.000 mm
