NTN SL02-4916
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Limiting Speed - Oil
2500 RPM
Limiting Speed - Grease
1300 RPM
Configuration
Two
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
215000 N
Dynamic Load Rating
111000 N
Enclosure
Open
Weight
0.826 kg
Operating Temperature Range
-40 to 120 ºC

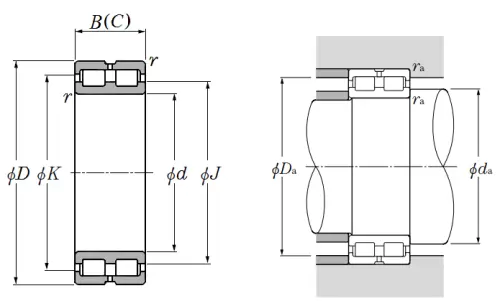

Dimensional Specifications
d
80.000 mm
D
110.000 mm
B
30.000 mm
C
30.000 mm
J
90.000 mm
K
98.500 mm
r
1.000 mm
e (Allowable Axial Move)
1.000 mm
da min
86.000 mm
Da max
104.000 mm
ras max
1.000 mm
