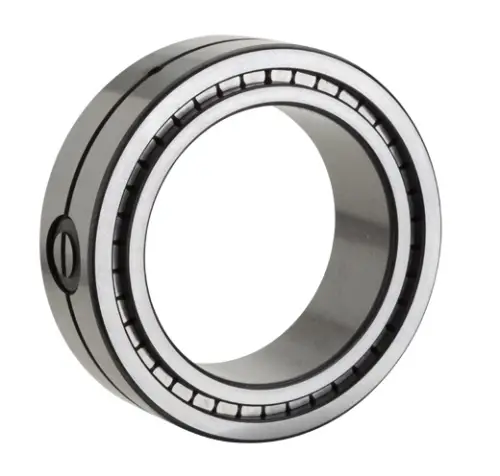

NTN SL02-4918
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Material
Hardened Alloy Steel
Cage Material
None
Limiting Speed - Oil
2200 RPM
Limiting Speed - Grease
1100 RPM
Configuration
Two
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
300000 N
Dynamic Load Rating
150000 N
Enclosure
Open
Weight
1.291 kg
Operating Temperature Range
-40 to 120 ºC

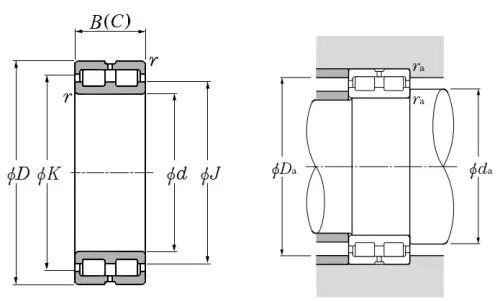

Dimensional Specifications
d
90.000 mm
D
125.000 mm
B
35.000 mm
C
35.000 mm
J
103.000 mm
K
112.500 mm
r
1.100 mm
e (Allowable Axial Move)
1.500 mm
da min
97.000 mm
Da max
118.000 mm
ras max
1.000 mm
