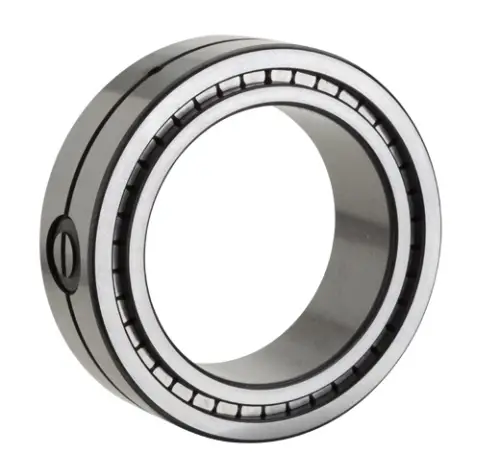

NTN SL02-4936
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
None
Limiting Speed - Oil
1100 RPM
Limiting Speed - Grease
560 RPM
Configuration
Two
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/ Oil Hole
Radial Internal Clearance
CN
Static Load Rating
1230000 N
Dynamic Load Rating
550000 N
Enclosure
Open
Weight
10.200 kg
Operating Temperature Range
-40 to 120 ºC

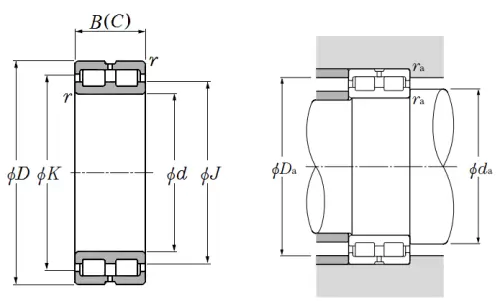

Dimensional Specifications
d
180.000 mm
D
250.000 mm
B
69.000 mm
C
69.000 mm
J
206.000 mm
K
222.000 mm
r
2.000 mm
e (Allowable Axial Move)
4.000 mm
da min
189.000 mm
Da max
241.000 mm
ras max
2.000 mm
