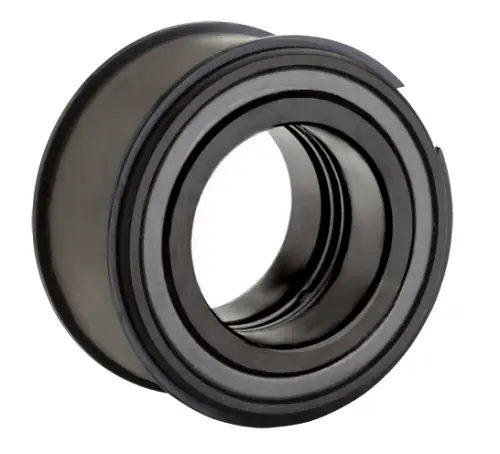

NTN SL04-5009NR
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Type
None
Cage Material
None
Limiting Speed - Grease
2200 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
144000 N
Dynamic Load Rating
95500 N
Enclosure
Double Shielded
Weight
0.697 kg
Operating Temperature Range
-40 to 120 ºC

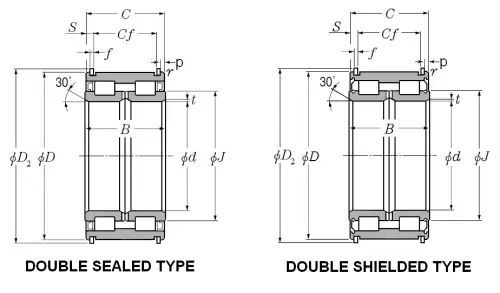

Dimensional Specifications
d
45.000 mm
D
75.000 mm
B
40.000 mm
C
39.000 mm
D1
71.320 mm
D2
78.800 mm
f
2.000 mm
p
28.000 mm
J
56.600 mm
Cf
30.000 mm
Cf1
30.000 mm
S
4.500 mm
E1
88.000 mm
t
0.800 mm
Angle of Chamfer
30 º
r
1.000 mm
da min
48.500 mm
