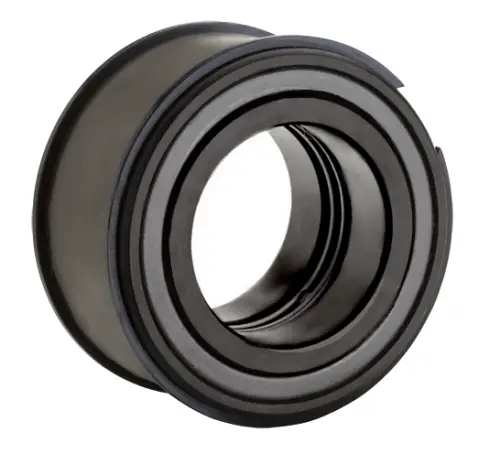

NTN SL04-5012NR
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Type
None
Cage Material
None
Limiting Speed - Grease
1700 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
208000 N
Dynamic Load Rating
123000 N
Enclosure
Double Shielded
Weight
1.253 kg
Operating Temperature Range
-40 to 120 ºC

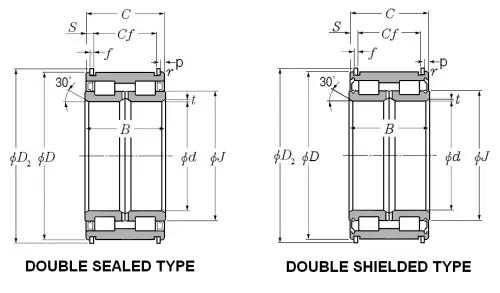

Dimensional Specifications
d
60.000 mm
D
95.000 mm
B
46.000 mm
C
45.000 mm
D1
91.310 mm
D2
99.800 mm
f
2.500 mm
p
31.500 mm
J
73.400 mm
Cf
34.000 mm
Cf1
34.000 mm
S
5.500 mm
E1
112.000 mm
t
1.000 mm
Angle of Chamfer
30 º
r
1.000 mm
da min
65.000 mm
