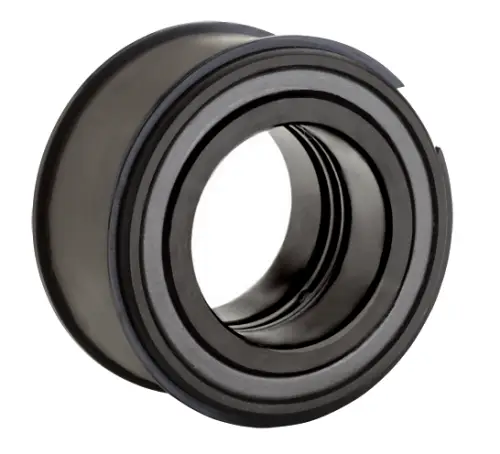

NTN SL04-5022NR
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Type
None
Cage Material
None
Limiting Speed - Grease
910 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
695000 N
Dynamic Load Rating
385000 N
Enclosure
Double Shielded
Weight
6.520 kg
Operating Temperature Range
-40 to 120 ºC

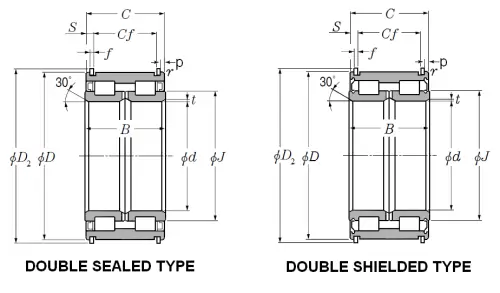

Dimensional Specifications
d
110.000 mm
D
170.000 mm
B
80.000 mm
C
79.000 mm
D1
163.140 mm
D2
176.000 mm
f
2.500 mm
p
62.500 mm
J
131.500 mm
Cf
65.000 mm
Cf1
65.000 mm
S
7.000 mm
E1
200.000 mm
t
1.800 mm
Angle of Chamfer
30 º
r
1.500 mm
da min
116.500 mm
