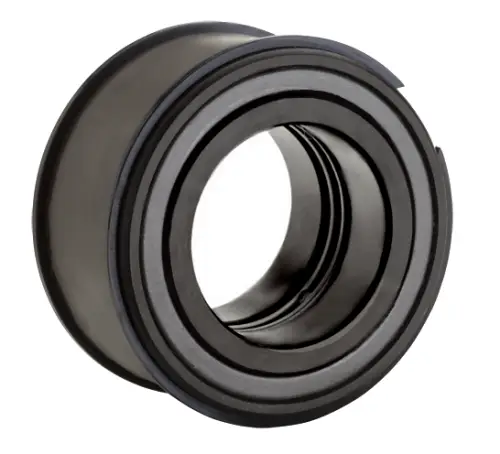

NTN SL04-5024NR
Double Row Cylindrical Roller Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Type
None
Cage Material
None
Limiting Speed - Grease
830 RPM
Precision
ISO Class 0
Configuration
Two
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
750000 N
Dynamic Load Rating
400000 N
Enclosure
Double Shielded
Weight
7.030 kg
Operating Temperature Range
-40 to 120 ºC

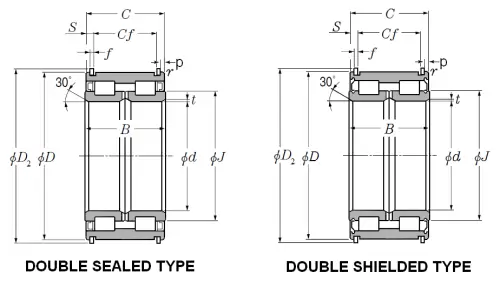

Dimensional Specifications
d
120.000 mm
D
180.000 mm
B
80.000 mm
C
79.000 mm
D1
173.150 mm
D2
188.000 mm
f
3.000 mm
p
62.000 mm
J
141.500 mm
Cf
65.000 mm
Cf1
65.000 mm
S
7.000 mm
E1
210.000 mm
t
1.800 mm
Angle of Chamfer
30 º
r
1.500 mm
da min
126.500 mm
