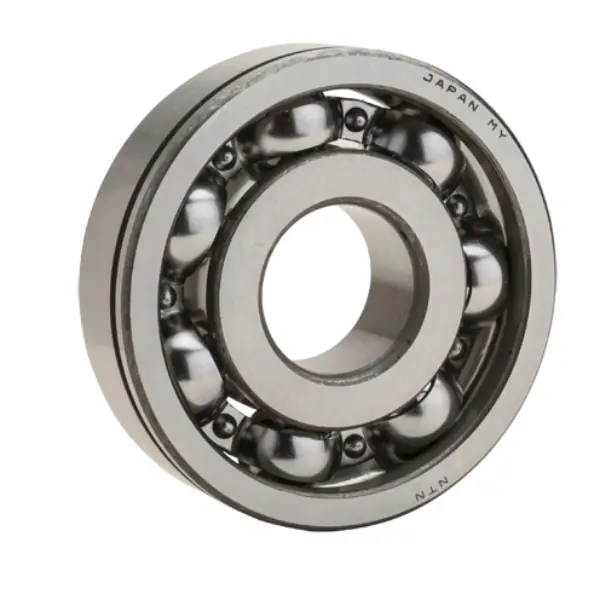

NTN SX05A02NV1
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
17200 N
Dynamic Load Rating
32500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

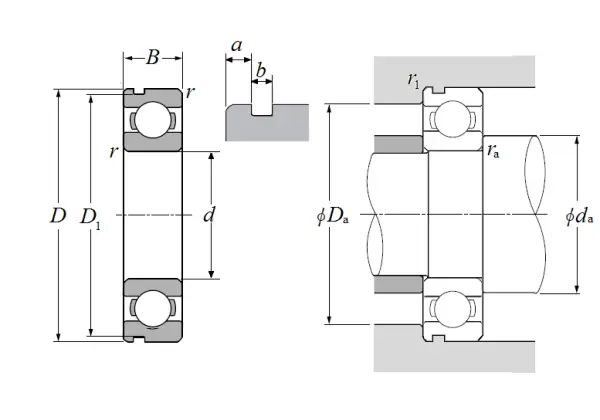

Dimensional Specifications
d
25.000 mm
D
71.000 mm
B
19.800 mm
D1
67.820 mm
a
3.000 mm
b
2 mm
r
1.500 mm
r1
1.500 mm
ras max
0.5 mm
