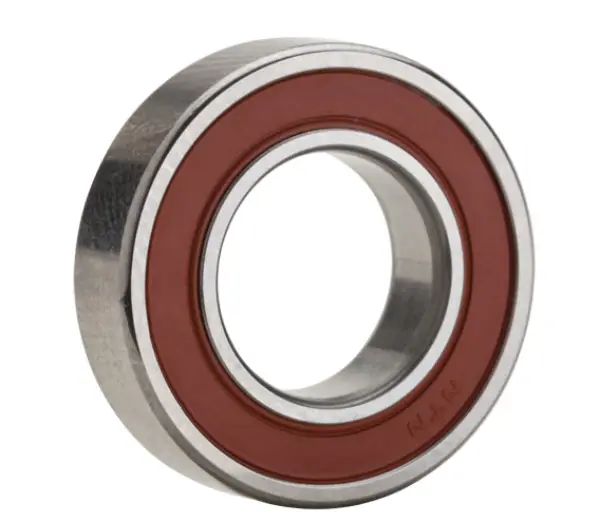

NTN SX0961LLU
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Ball Material
Steel
Static Load Rating
32000 N
Dynamic Load Rating
53000 N
Operating Temperature Range
-40 to 120 ºC

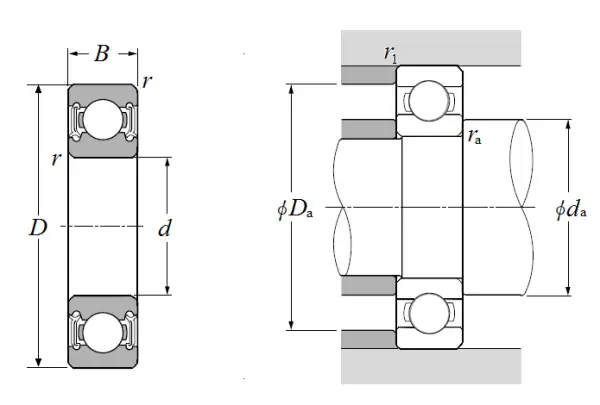

Dimensional Specifications
d
45.000 mm
D
114.000 mm
B
35.000 mm
r
2.000 mm
