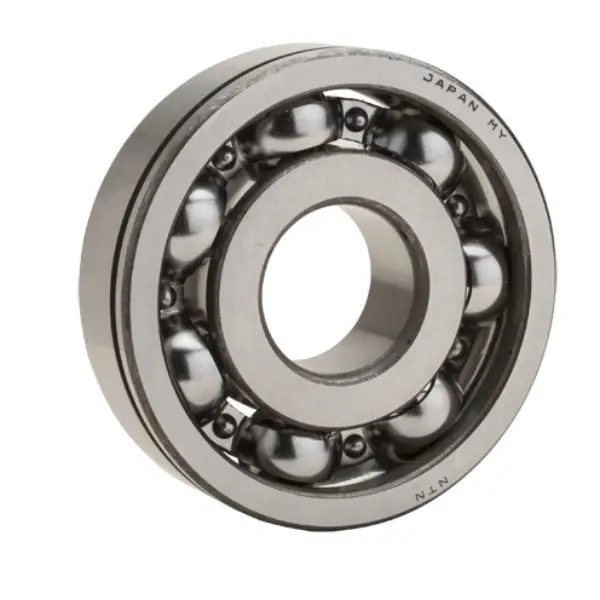

NTN TM-SC0788NCS40PX1
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
Special
Static Load Rating
21500 N
Dynamic Load Rating
39500 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

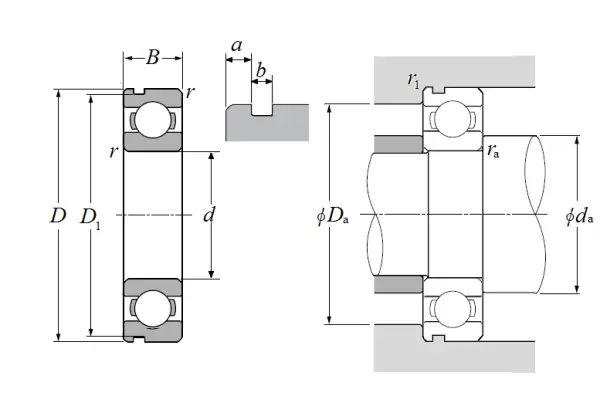

Dimensional Specifications
d
35.000 mm
D
80.000 mm
B
24.000 mm
D1
76.810 mm
a
2.700 mm
b
1.900 mm
r
2.000 mm
r1
2.000 mm
ras max
0.5 mm
