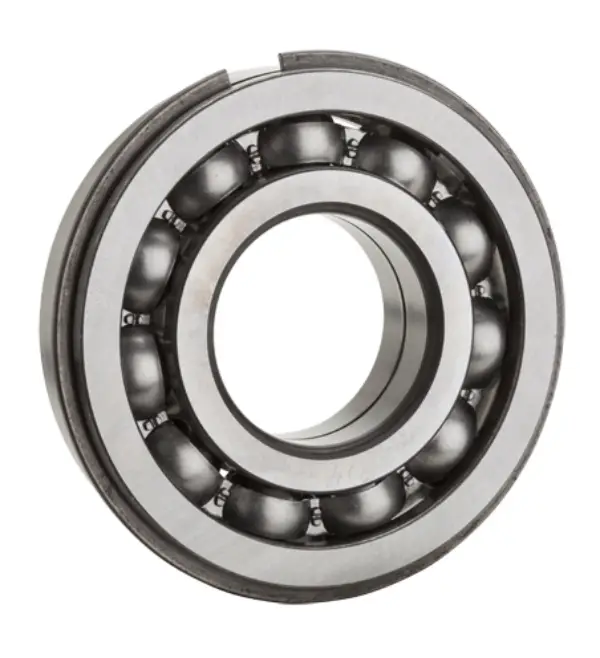

NTN TM-SC0788NRCS40PX1
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
8800 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
21200 N
Dynamic Load Rating
30500 N
Enclosure
Open
Weight
0.506 kg
Operating Temperature Range
-40 to 120 ºC

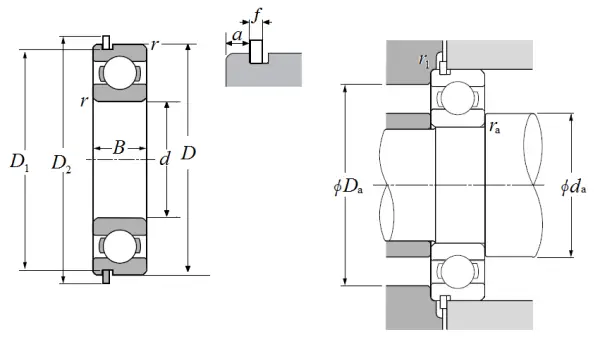

Dimensional Specifications
d
35.000 mm
D
80.000 mm
B
24.000 mm
D2
86.600 mm
a
2.700 mm
f
1.650 mm
r
2.500 mm
r1
0.500 mm
da min
43.000 mm
da max
47.000 mm
Da max
92.000 mm
ras max
1.500 mm
