NTN TMB209T2LBLUCS221
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Single Row Deep Grove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
5200 RPM
Limiting Speed - Grease
5200 RPM
Seal Type
Non-Contact/Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
14.1
Radial Internal Clearance
Special Clearance (CS221)
Static Load Rating
20400 N
Dynamic Load Rating
36000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

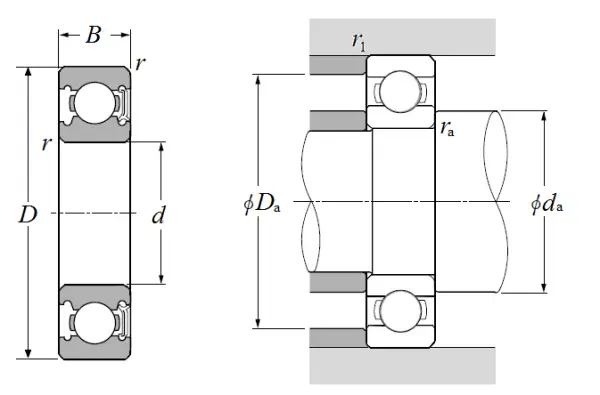

Dimensional Specifications
d
45.000 mm
D
85.000 mm
B
19.000 mm
r
1.100 mm
r1
0.500 mm
