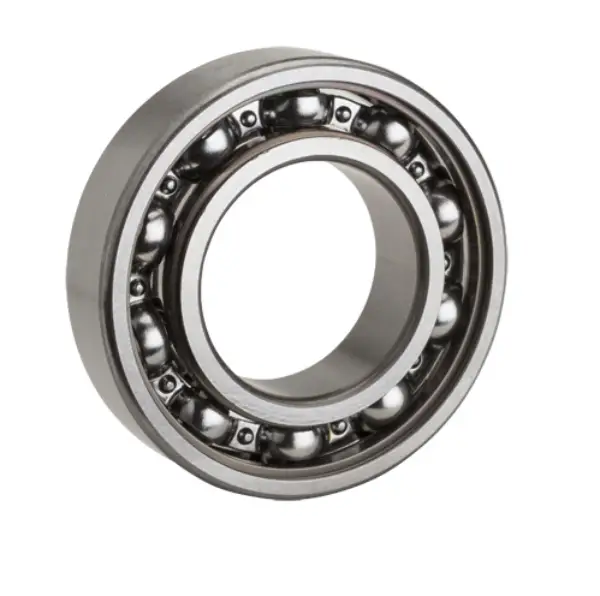

NTN TMB301T2XC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Limiting Speed - Oil
24000 RPM
Limiting Speed - Grease
20000 RPM
Seal Type
None
Seal Material
None
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
4200 N
Dynamic Load Rating
9700 N
Enclosure
Open
Weight
0.060 kg

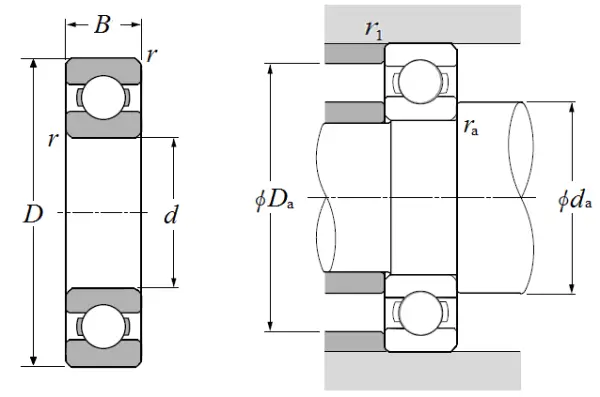

Dimensional Specifications
d
12.000 mm
D
37.000 mm
B
12.000 mm
