NTN TS2-6808ZZNRC4
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
12000 RPM
Precision
ISO Class 0
Configuration
One
Factor
16.3
Radial Internal Clearance
C4
Static Load Rating
4400 N
Dynamic Load Rating
5650 N
Enclosure
Double Shielded
Weight
0.033 kg
Operating Temperature Range
-40 to 160 ºC

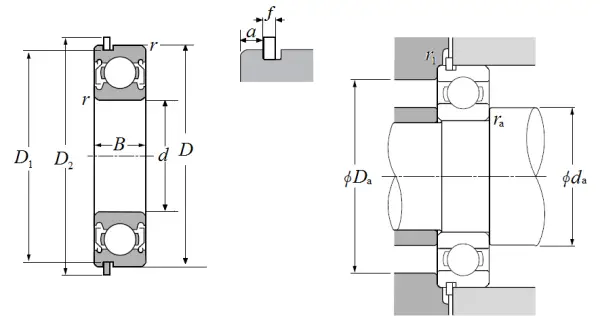

Dimensional Specifications
d
40.000 mm
D
52.000 mm
B
7.000 mm
D1
50.700 mm
D2
54.800 mm
a
1.300 mm
f
0.850 mm
r
0.300 mm
r1
0.300 mm
da min
42.000 mm
da max
43.000 mm
Da max
50.000 mm
ras max
0.300 mm
