NTN TS3-23224BL1W33C4
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
e
0.36
Y1
1.89
Y2
2.82
Y0
1.85
Series
232
Radial Internal Clearance
C4
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Enclosure
Open
Operating Temperature Range
-40 to 200 ºC

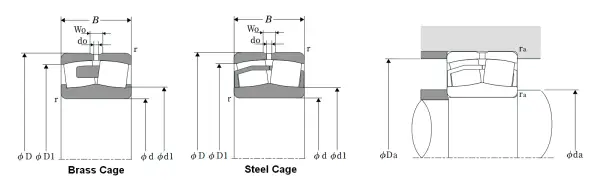

Dimensional Specifications
d
120.000 mm
D
215.000 mm
B
76.000 mm
r
2.100 mm
W0
11.000 mm
d0
6.000 mm
da min
132.000 mm
Da max
203.000 mm
ras max
2.000 mm
