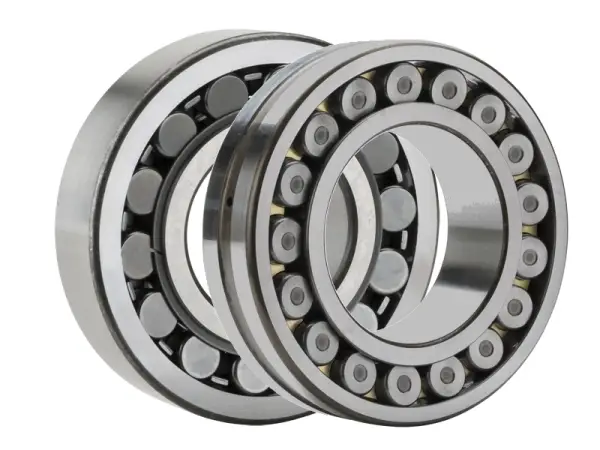

NTN TS3-23976L1KC4PX51
Spherical Roller Bearings w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
e
0.19
Y1
3.54
Y2
5.27
Y0
3.46
Series
239
Radial Internal Clearance
C4
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Taper
1:12
Enclosure
Open
Weight
67.700 kg
Operating Temperature Range
-40 to 200 ºC

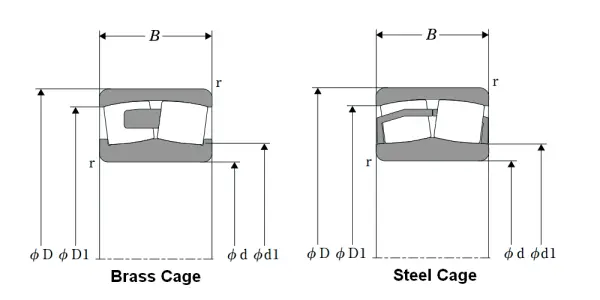

Dimensional Specifications
d
380.000 mm
D
520.000 mm
B
106.000 mm
r
4.000 mm
da min
398.000 mm
Da max
502.000 mm
ras max
3 mm
