NTN TS3-6207LUA1C4
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
6300 RPM
Seal Type
Contact
Seal Material
Polyacrylic Seal
Precision
ISO Class 0
Configuration
One
Factor
65.5
Radial Internal Clearance
C4
Static Load Rating
15300 N
Dynamic Load Rating
28400 N
Enclosure
Single Sealed
Weight
0.271 kg
Operating Temperature Range
-40 to 200 ºC

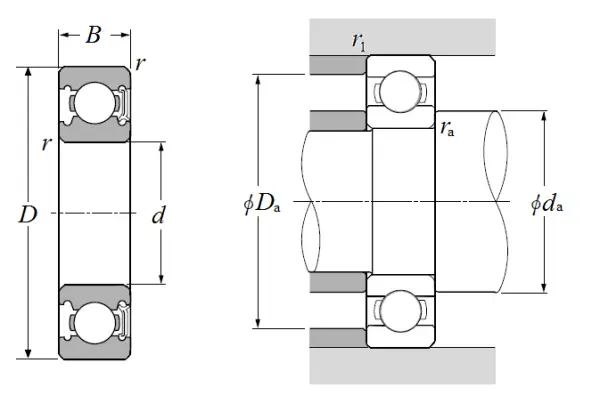

Dimensional Specifications
d
35.000 mm
D
72.000 mm
B
17.000 mm
r
1.100 mm
r1
0.500 mm
da min
41.500 mm
da max
45.000 mm
Da max
65.500 mm
ras max
1.000 mm
