NTN TS3-63214ZZC4
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
5100 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 6
Configuration
One
Factor
13.2
Radial Internal Clearance
C4
Static Load Rating
44000 N
Dynamic Load Rating
69000 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 200 ºC

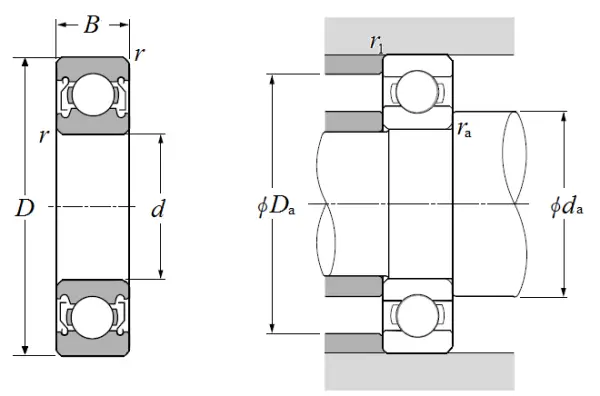

Dimensional Specifications
d
70.000 mm
D
125.000 mm
B
39.700 mm
r
1.500 mm
r1
0.500 mm
