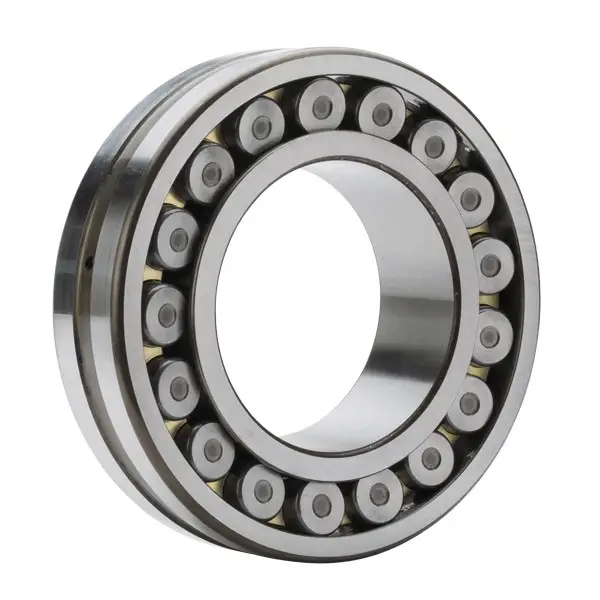

NTN TS3-6E-22244BL1KW33C4
Spherical Roller Bearings w/ Tapered Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Tapered
Material
Through Hardened Steel
Cage Type
Machined
Cage Material
Brass
Limiting Speed - Oil
1500 RPM
Limiting Speed - Grease
1200 RPM
e
0.27
Y1
2.46
Y2
3.66
Y0
2.40
Series
222
Radial Internal Clearance
C4
Ring Modification
Relube
Tolerance
JIS-0 RBEC-1
Taper
1:12
Static Load Rating
2690000 N
Dynamic Load Rating
2210000 N
Enclosure
Open
Weight
59.410 kg
Operating Temperature Range
-40 to 200 ºC
Dimensional Specifications
d
220.000 mm
D
400.000 mm
B
108.000 mm
d1
264.000 mm
D1
358.000 mm
r
4.000 mm
W0
21.000 mm
d0
10.000 mm
da min
238.000 mm
Da max
382.000 mm
ras max
3 mm
