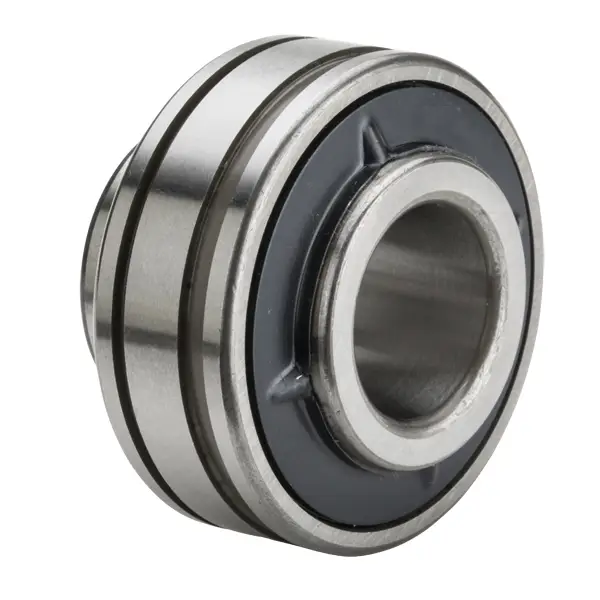

NTN UCS205LD1N
Set Screw Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Through Hardened
Limiting Speed - Grease
5900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision Rating
ISO Class 0
Performance
Standard Duty
Locking Device
2 -120° Set Screw
Lubrication
Outer Ring
Radial Internal Clearance
CN
Static Load Rating
7850 N
Dynamic Load Rating
14000 N
Enclosure
Double Sealed
Weight
0.970 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
25.000 mm
D
52.000 mm
C
17.000 mm
B
34.100 mm
r
1.000 mm
r1
0.600 mm
ds
M5x0.8
G
5 mm
d4
33.9 mm
S1
19.8 mm
S
14.3 mm
a
3.2 mm
b
1.5 mm
D1
49.730 mm
F
4.1 mm
Specifications
Radial Dynamic Load Rating
14000 N
Lubrication
Outer Ring
Radial Static Load Rating
7850 N
