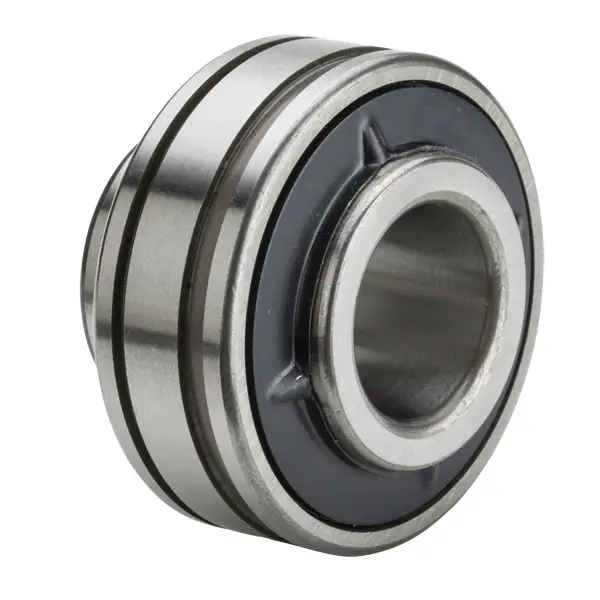

NTN UCS206D1NC3
Set Screw Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Through Hardened
Limiting Speed - Grease
4900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision Rating
ISO Class 0
Performance
Standard Duty
Locking Device
2 -120° Set Screw
Lubrication
Outer Ring
Radial Internal Clearance
C3
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Weight
1.610 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
30.000 mm
D
62.000 mm
C
19.000 mm
B
38.100 mm
r
1.000 mm
r1
1.000 mm
ds
M6x0.75
G
5 mm
d4
40.8 mm
S1
22.2 mm
S
15.9 mm
a
3.2 mm
b
2.1 mm
D1
59.610 mm
F
4.2 mm
Specifications
Radial Dynamic Load Rating
19500 N
Lubrication
Outer Ring
Radial Static Load Rating
11300 N
