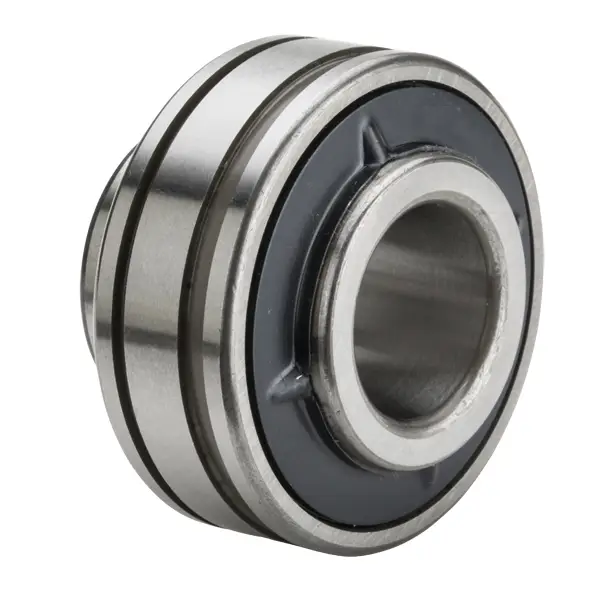

NTN UCS211-203D1N
Set Screw Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Limiting Speed - Grease
2900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision Rating
Class 0
Performance
Standard Duty
Locking Device
2 -120° Set Screw
Lubrication
Re-Lubricatable
Radial Internal Clearance
CN
Static Load Rating
29200 N
Dynamic Load Rating
43500 N
Enclosure
Double Sealed
Weight
1.120 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
55.563 mm
D
100.000 mm
C
25.000 mm
B
55.600 mm
r
2.000 mm
r1
2.000 mm
ds
5/16-24 UNF
G
9 mm
d4
69 mm
S1
33.4 mm
S
22.2 mm
a
4.4 mm
b
2.85 mm
D1
96.800 mm
F
5.9 mm
