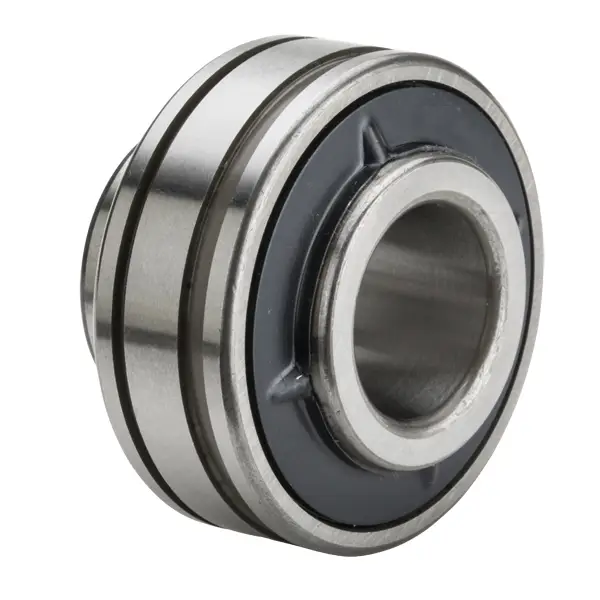

NTN UCS212-204LD1N
Set Screw Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Limiting Speed - Grease
2500 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
2 -120° Set Screw
Lubrication
Re-Lubricatable
Static Load Rating
36000 N
Dynamic Load Rating
52500 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
57.150 mm
D
110.000 mm
C
27.000 mm
B
65.100 mm
r
2.000 mm
r1
2.000 mm
ds
3/8-24 UNF
G
10 mm
d4
77 mm
S1
39.7 mm
S
25.4 mm
a
4.4 mm
b
2.85 mm
D1
106.810 mm
F
6 mm
