UCS305-015D1
MORE +
CLOSE +
(BRAND): NTN
(Availability):In Stock

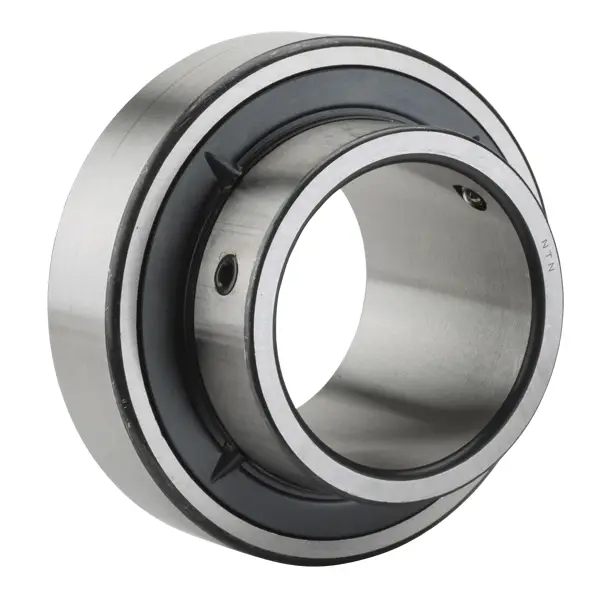

Detailed data of UCS305-015D1 Set Screw Type Bearings - Cylindrical O.D.

Technical Specifications

Type Insert Bearing
Bore Type Round
Bearing Type Ball Bearing
Material Through Hardened Steel
Ball Material Steel
Limiting Speed - Grease 5400 RPM
Seal Type Contact
Seal Material Nitrile Rubber
Performance Heavy Duty
Locking Device 2 -120° Set Screw
Lubrication Re-Lubricatable
Static Load Rating 10900 N
Dynamic Load Rating 21200 N
Enclosure Double Sealed
Weight 0.376 kg
Operating Temperature Range -40 to 120 ºC

Dimensional Specifications

d 23.813 mm
D 62.000 mm
C 20.000 mm
B 38.000 mm
r 1.500 mm
ds 1/4-28 UNF
G 6.000 mm
d4 36.8 mm
S1 23 mm
S 15 mm

NTN UCS305-015D1 Insert Bearing Overview

What type of bearing is the UCS305-015D1?

The NTN UCS305-015D1 is part of the Set Screw Type Bearings - Cylindrical O.D. series. It is an insert ball bearing with a round bore, a 2-120° set screw locking device, and a cylindrical outside diameter.

  • Brand: NTN
  • Series: Set Screw Type Bearings - Cylindrical O.D.
  • Bearing type: Ball bearing / insert bearing
  • Bore type: Round
  • Locking device: 2-120° set screw

UCS305-015D1 Dimensions and Specifications

What dimensions and load ratings are listed for this bearing?

The supplied dimensional data identifies the bearing as having a 23.813 mm bore, 62.000 mm outside diameter, and selected width and shoulder dimensions. Load ratings and weight are also provided in the product specification data.

  1. Bore (d): 23.813 mm
  2. Outside diameter (D): 62.000 mm
  3. Dimension C: 20.000 mm
  4. Dimension B: 38.000 mm
  5. Fillet radius (r): 1.500 mm
  6. Set screw thread (ds): 1/4-28 UNF
  7. Dimension G: 6.000 mm
  8. Dimension d4: 36.8 mm
  9. Dimension S1: 23 mm
  10. Dimension S: 15 mm
  11. Static load rating: 10900 N
  12. Dynamic load rating: 21200 N
  13. Weight: 0.376 kg

Construction, Sealing, and Operating Data

What construction and performance details are included in the product data?

The UCS305-015D1 is specified with through-hardened steel construction, steel balls, nitrile rubber contact seals, and a double-sealed enclosure. The bearing is re-lubricatable and has a listed grease limiting speed of 5400 RPM.

  • Bearing material: Through hardened steel
  • Ball material: Steel
  • Seal type: Contact seal
  • Seal material: Nitrile rubber
  • Enclosure: Double sealed
  • Lubrication: Re-lubricatable
  • Performance designation: Heavy duty
  • Limiting speed with grease: 5400 RPM
  • Operating temperature range: -40 to 120 ºC
