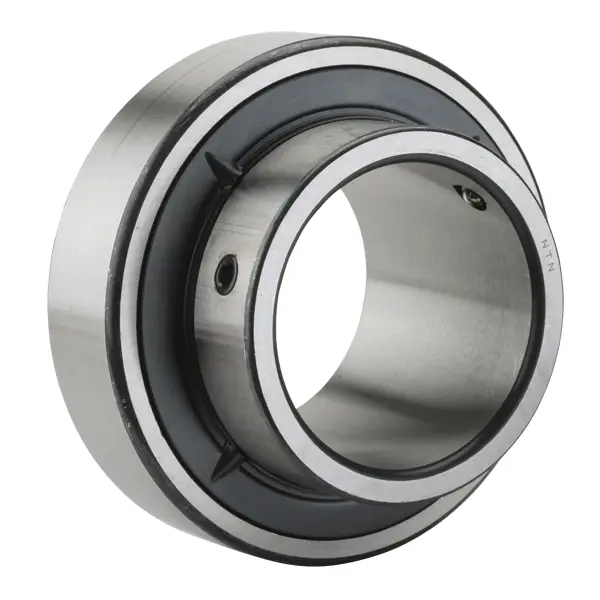

NTN UCS311-203D1

Set Screw Type Bearings - Cylindrical O.D.
(BRAND):NTN
(Availability):In Stock

Detailed data of

UCS311-203D1

Technical Specifications

Type Insert Bearing
Bore Type Round
Bearing Type Ball Bearing
Material Through Hardened Steel
Ball Material Steel
Limiting Speed - Grease 2600 RPM
Seal Type Contact
Seal Material Nitrile Rubber
Performance Heavy Duty
Locking Device 2 -120° Set Screw
Lubrication Re-Lubricatable
Static Load Rating 45000 N
Dynamic Load Rating 71500 N
Enclosure Double Sealed
Weight 2.123 kg
Operating Temperature Range -40 to 120 ºC

Dimensional Specifications

d 55.563 mm
D 120.000 mm
C 34.000 mm
B 66.000 mm
r 2.500 mm
ds 1/2-20 UNF
G 12 mm
d4 76.6 mm
S1 41 mm
S 25 mm

NTN UCS311-203D1 Insert Bearing Overview

The UCS311-203D1 is an NTN set screw type insert bearing in the Set Screw Type Bearings - Cylindrical O.D. series. It has a round bore, ball bearing construction, through hardened steel bearing material, steel balls, and a 2-120 degree set screw locking device.

What enclosure and seal features are included?

The bearing is double sealed and uses contact seals made from nitrile rubber. The stated operating temperature range is -40 to 120 ºC, and the grease limiting speed is 2600 RPM.

UCS311-203D1 Dimensions and Specifications

  • Bore diameter (d): 55.563 mm
  • Outside diameter (D): 120.000 mm
  • Width dimension (C): 34.000 mm
  • Width dimension (B): 66.000 mm
  • Chamfer dimension (r): 2.500 mm
  • Set screw thread (ds): 1/2-20 UNF
  • G: 12 mm
  • d4: 76.6 mm
  • S1: 41 mm
  • S: 25 mm
  • Weight: 2.123 kg

What load ratings are listed for this bearing?

The supplied data lists a static load rating of 45000 N and a dynamic load rating of 71500 N for the UCS311-203D1.

UCS311-203D1 Design and Maintenance Details

The UCS311-203D1 is described as a heavy duty, re-lubricatable insert bearing. Its set screw locking arrangement and cylindrical outside diameter identify it within NTN's set screw type insert bearing range.

How is the bearing configured for relubrication?

The product data identifies the UCS311-203D1 as re-lubricatable. No fitting location, grease quantity, relubrication interval, or maintenance procedure is provided in the supplied data.
