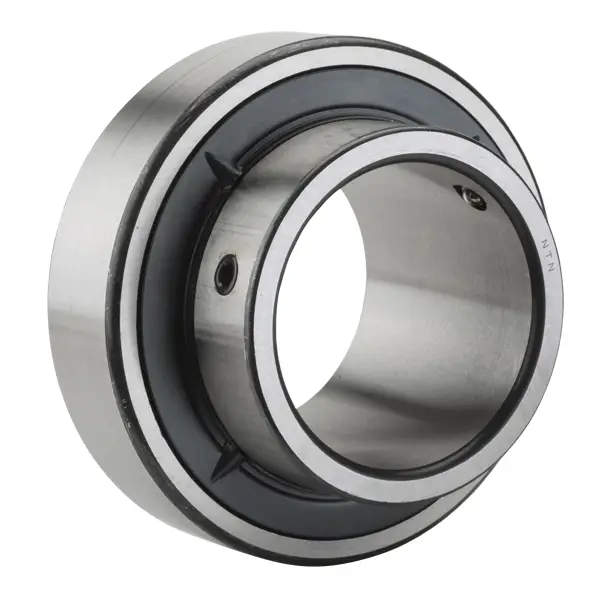

NTN UCS315-300D1

Set Screw Type Bearings - Cylindrical O.D.
(BRAND):NTN
(Availability):In Stock

Detailed data of

UCS315-300D1

Technical Specifications

Type Insert Bearing
Bore Type Round
Bearing Type Ball Bearing
Material Through Hardened Steel
Ball Material Steel
Limiting Speed - Grease 1900 RPM
Seal Type Contact
Seal Material Nitrile Rubber
Performance Heavy Duty
Locking Device 2 -120° Set Screw
Lubrication Re-Lubricatable
Static Load Rating 77000 N
Dynamic Load Rating 113000 N
Enclosure Double Sealed
Weight 4.808 kg
Operating Temperature Range -40 to 120 ºC

Dimensional Specifications

d 76.200 mm
D 160.000 mm
C 43.000 mm
B 82.000 mm
r 2.500 mm
ds 9/16-18 UNF
G 14 mm
d4 101.3 mm
S1 50 mm
S 32 mm

NTN UCS315-300D1 Insert Bearing Overview

What is included in the product identity?

The UCS315-300D1 is an NTN insert bearing in the Set Screw Type Bearings - Cylindrical O.D. series. It is classified as a ball bearing with a round bore and uses a 2-set-screw locking device spaced at 120 degrees.

UCS315-300D1 Dimensions and Specifications

What dimensions and load values are listed?

  • Bore, d: 76.200 mm
  • Outside diameter, D: 160.000 mm
  • Dimension C: 43.000 mm
  • Inner ring width, B: 82.000 mm
  • Fillet radius, r: 2.500 mm
  • Set screw thread, ds: 9/16-18 UNF
  • Dimension G: 14 mm
  • Dimension d4: 101.3 mm
  • Dimension S1: 50 mm
  • Dimension S: 32 mm
  • Static load rating: 77000 N
  • Dynamic load rating: 113000 N

UCS315-300D1 Construction and Operating Data

Which construction and performance details are provided?

  1. Bearing material: through hardened steel; the ball material is steel.
  2. Enclosure: double sealed, with nitrile rubber contact seals.
  3. Lubrication: re-lubricatable design.
  4. Grease limiting speed: 1900 RPM.
  5. Operating temperature range: -40 to 120 ºC.
  6. Weight: 4.808 kg.
  7. Listed performance designation: heavy duty.
