NTN UCS318D1
Set Screw Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
1600 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Heavy Duty
Locking Device
2 -120° Set Screw
Lubrication
Re-Lubricatable
Radial Internal Clearance
CN
Static Load Rating
107000 N
Dynamic Load Rating
143000 N
Enclosure
Double Sealed
Weight
7.800 kg
Operating Temperature Range
-40 to 120 ºC

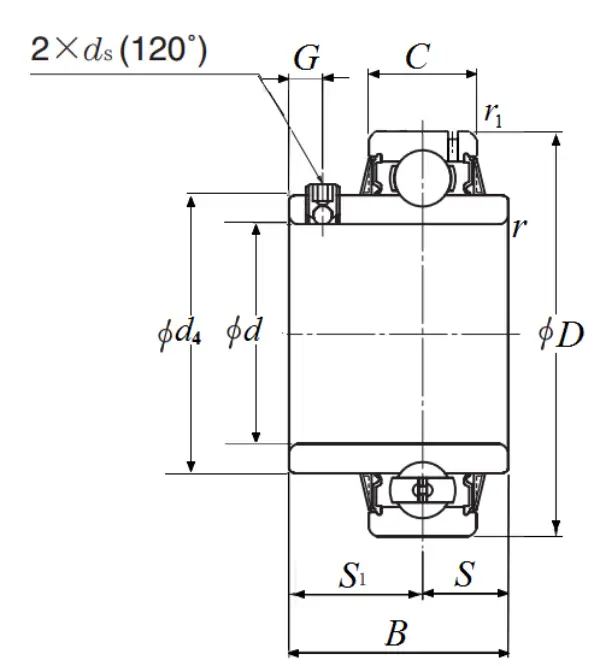

Dimensional Specifications
d
90.000 mm
D
190.000 mm
C
49.000 mm
B
96.000 mm
r
3.000 mm
ds
M16x1.5
G
16 mm
d4
120.9 mm
S1
56 mm
S
40 mm
