(BRAND): NTN
(Availability):In Stock

Detailed data of UCS319-312D1 Set Screw Type Bearings - Cylindrical O.D.

Technical Specifications

Type Insert Bearing
Bore Type Round
Bearing Type Ball Bearing
Material Through Hardened Steel
Ball Material Steel
Limiting Speed - Grease 1500 RPM
Seal Type Contact
Seal Material Nitrile Rubber
Performance Heavy Duty
Locking Device 2 -120° Set Screw
Lubrication Re-Lubricatable
Static Load Rating 119000 N
Dynamic Load Rating 153000 N
Enclosure Double Sealed
Weight 8.936 kg
Operating Temperature Range -40 to 120 ºC

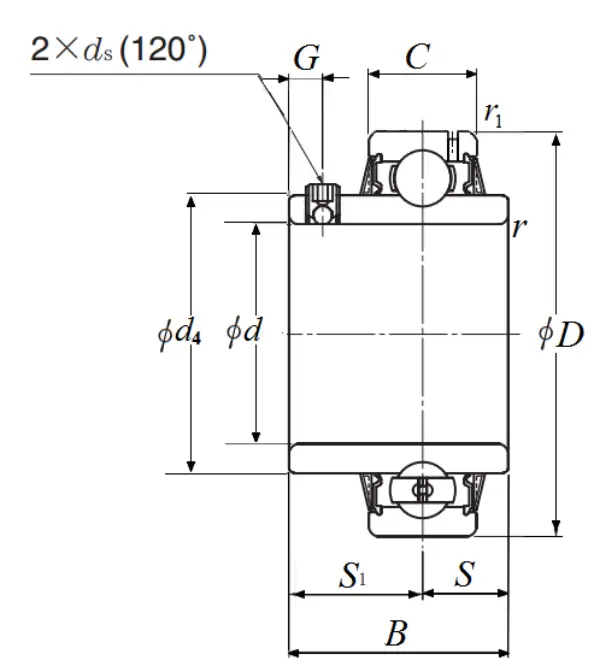

Dimensional Specifications

d 95.250 mm
D 200.000 mm
C 51.000 mm
B 103.000 mm
r 3.000 mm
ds 5/8-18 UNF
G 16 mm
d4 127.5 mm
S1 62 mm
S 41 mm

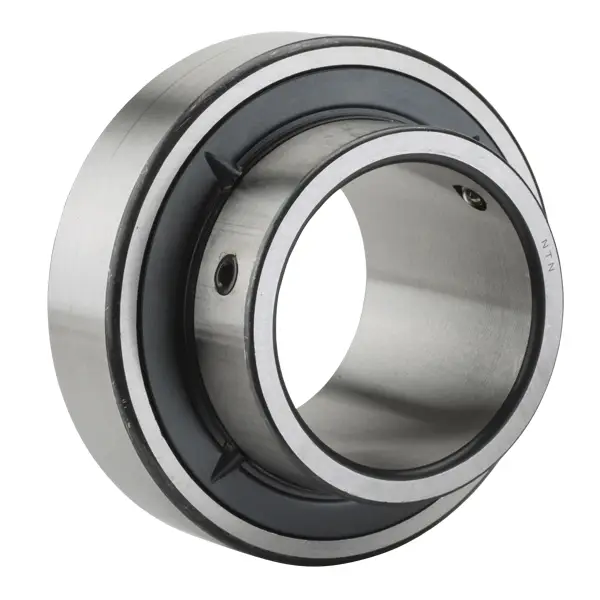

NTN UCS319-312D1 Insert Bearing Overview

The NTN UCS319-312D1 belongs to the Set Screw Type Bearings - Cylindrical O.D. product series and is categorized as an insert ball bearing. It uses a round bore, through-hardened steel bearing material, steel balls, and a 2-set-screw locking device arranged at 120 degrees.

What type of bearing is the UCS319-312D1?

It is an insert ball bearing with a cylindrical outside diameter and a set screw locking arrangement. The supplied data identifies it as a heavy-duty, re-lubricatable, double-sealed unit with nitrile rubber contact seals.

UCS319-312D1 Dimensions and Technical Data

  • Bore diameter d: 95.250 mm
  • Outside diameter D: 200.000 mm
  • Dimension C: 51.000 mm
  • Dimension B: 103.000 mm
  • Chamfer dimension r: 3.000 mm
  • Set screw thread ds: 5/8-18 UNF
  • Dimension G: 16 mm
  • Dimension d4: 127.5 mm
  • Dimension S1: 62 mm
  • Dimension S: 41 mm

What load and speed values are specified?

The supplied specifications list a static load rating of 119000 N, a dynamic load rating of 153000 N, and a grease limiting speed of 1500 RPM. These values should be used according to the selected operating conditions.

Sealing, Lubrication, and Temperature Details

The UCS319-312D1 is supplied as a double-sealed insert bearing with contact seals made from nitrile rubber. It is re-lubricatable and has a stated operating temperature range of -40 to 120 ºC. The bearing weight is listed as 8.936 kg.

How does the bearing help retain lubrication and reduce contamination?

Its double contact seal configuration and nitrile rubber seal material form the supplied sealing arrangement. Because the unit is re-lubricatable, maintenance procedures should follow the applicable equipment and lubrication requirements.
