NTN UCS320-313D1
Set Screw Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
1500 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Heavy Duty
Locking Device
2 -120° Set Screw
Lubrication
Re-Lubricatable
Static Load Rating
141000 N
Dynamic Load Rating
173000 N
Enclosure
Double Sealed
Weight
11.521 kg
Operating Temperature Range
-40 to 120 ºC

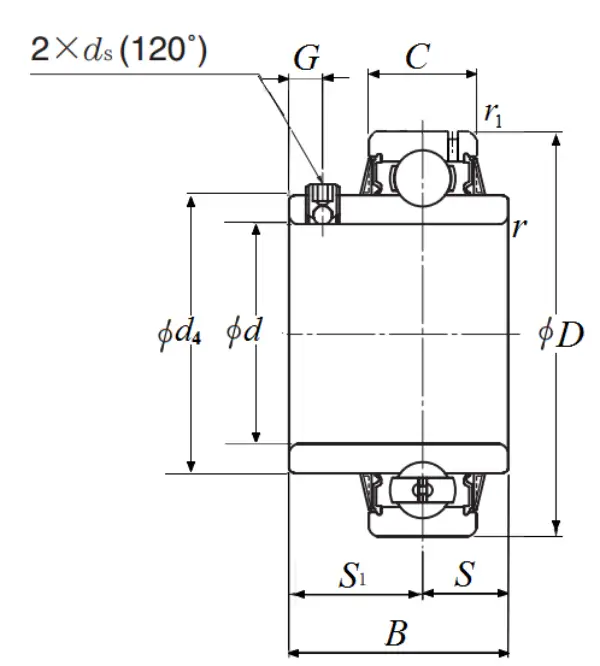

Dimensional Specifications
d
96.838 mm
D
215.000 mm
C
55.000 mm
B
108.000 mm
r
3.000 mm
ds
5/8-18 UNF
G
18 mm
d4
135.6 mm
S1
66 mm
S
42 mm
