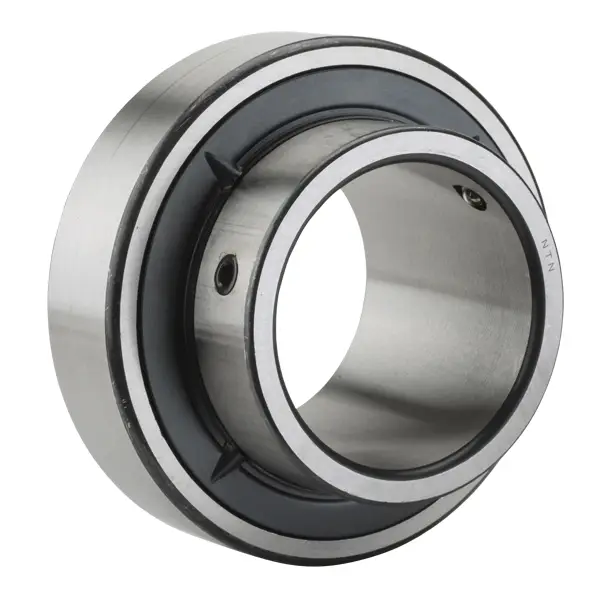

The NTN UCS320-400D1 is part of the Set Screw Type Bearings - Cylindrical O.D. series. It is configured as a round-bore ball bearing with a through-hardened steel bearing material, steel balls, and a 2-set-screw locking device arranged at 120 degrees.
It is an insert-type ball bearing in NTN's set screw, cylindrical outside diameter product series. The supplied data identifies a round bore, contact seals, a double-sealed enclosure, and a re-lubricatable design.
The supplied specifications list a static load rating of 141000 N, a dynamic load rating of 173000 N, and a grease limiting speed of 1500 RPM. The bearing weight is listed as 10.932 kg.
The UCS320-400D1 uses nitrile rubber contact seals and is identified as double sealed. It is re-lubricatable and has a listed operating temperature range of -40 to 120 ºC. The supplied performance classification is Heavy Duty.
The bearing includes contact seals made from nitrile rubber and a double-sealed enclosure. Shaft retention is handled by a locking device using two set screws positioned at 120 degrees, with a listed set screw thread of 5/8-18 UNF.
