UCS320D1
MORE +
CLOSE +
(BRAND): NTN
(Availability):In Stock

Detailed data of UCS320D1 Set Screw Type Bearings - Cylindrical O.D.

Technical Specifications

Type Insert Bearing
Bore Type Round
Bearing Type Ball Bearing
Material Through Hardened Steel
Ball Material Steel
Limiting Speed - Grease 1500 RPM
Seal Type Contact
Seal Material Nitrile Rubber
Performance Heavy Duty
Locking Device 2 -120° Set Screw
Lubrication Re-Lubricatable
Radial Internal Clearance CN
Static Load Rating 141000 N
Dynamic Load Rating 173000 N
Enclosure Double Sealed
Weight 11.100 kg
Operating Temperature Range -40 to 120 ºC

Dimensional Specifications

d 100.000 mm
D 215.000 mm
C 55.000 mm
B 108.000 mm
r 3.000 mm
ds M16x1.5
G 18 mm
d4 135.6 mm
S1 66 mm
S 42 mm

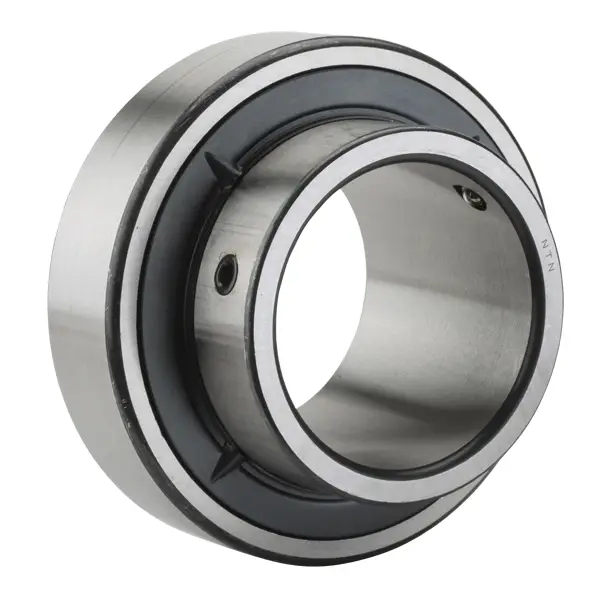

NTN UCS320D1 Insert Bearing Overview

The NTN UCS320D1 is part of the Set Screw Type Bearings - Cylindrical O.D. series within the insert bearing category. It uses a round bore, a ball bearing design, and a 2-set-screw locking device arranged at 120 degrees.

What type of bearing is the UCS320D1?

It is an insert ball bearing with a cylindrical outside diameter and set screw locking. The supplied data identifies it as a heavy-duty, through-hardened steel bearing with steel balls and CN radial internal clearance.

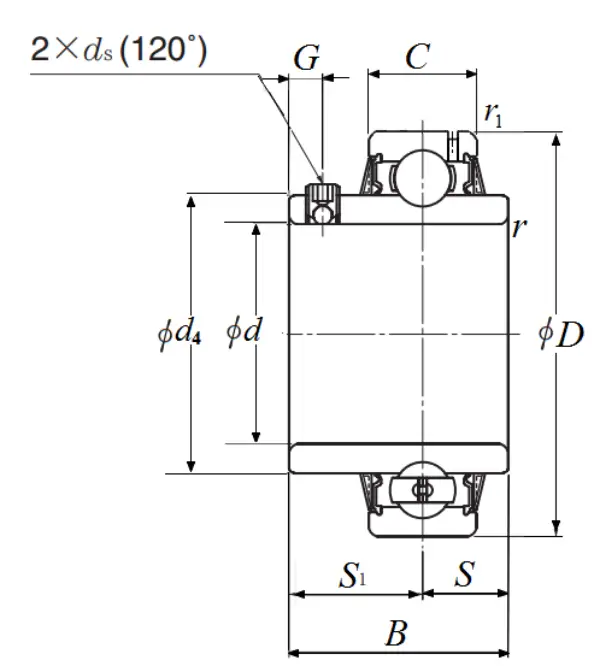

UCS320D1 Dimensions and Performance Specifications

  • Bore diameter (d): 100.000 mm
  • Outside diameter (D): 215.000 mm
  • Width (C): 55.000 mm
  • Inner ring width (B): 108.000 mm
  • Fillet radius (r): 3.000 mm
  • Set screw thread (ds): M16x1.5
  • Additional dimensional data: G 18 mm, d4 135.6 mm, S1 66 mm, S 42 mm
  • Static load rating: 141000 N
  • Dynamic load rating: 173000 N
  • Grease limiting speed: 1500 RPM
  • Weight: 11.100 kg

What load and speed values are provided for this bearing?

The supplied specifications list a static load rating of 141000 N, a dynamic load rating of 173000 N, and a grease limiting speed of 1500 RPM. These values should be used according to the relevant engineering or selection requirements.

Sealing, Lubrication, and Temperature Details

The UCS320D1 is double sealed with contact seals made from nitrile rubber. It is designed as a re-lubricatable bearing and has a stated operating temperature range of -40 to 120 ºC.

How is the UCS320D1 sealed and maintained?

The bearing uses contact nitrile rubber seals and is listed as double sealed. Its re-lubricatable design supports relubrication when the equipment maintenance arrangement calls for it.
