UCS326D1
MORE +
CLOSE +
(BRAND): NTN
(Availability):In Stock

Detailed data of UCS326D1 Set Screw Type Bearings - Cylindrical O.D.

Technical Specifications

Type Insert Bearing
Bore Type Round
Bearing Type Ball Bearing
Material Through Hardened Steel
Ball Material Steel
Seal Type Contact
Seal Material Nitrile Rubber
Performance Heavy Duty
Locking Device 2 -120° Set Screw
Lubrication Re-Lubricatable
Radial Internal Clearance CN
Static Load Rating 214000 N
Dynamic Load Rating 229000 N
Enclosure Double Sealed
Weight 23.600 kg
Operating Temperature Range -40 to 120 ºC

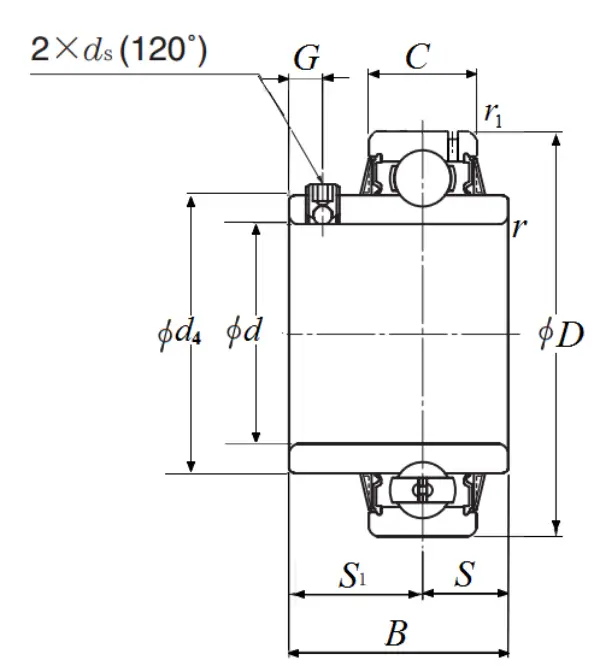

Dimensional Specifications

d 130.000 mm
D 280.000 mm
C 67.000 mm
B 135.000 mm
r 4.000 mm
ds M20x1.5
G 20.000 mm
d4 178.3 mm
S1 81 mm
S 54 mm

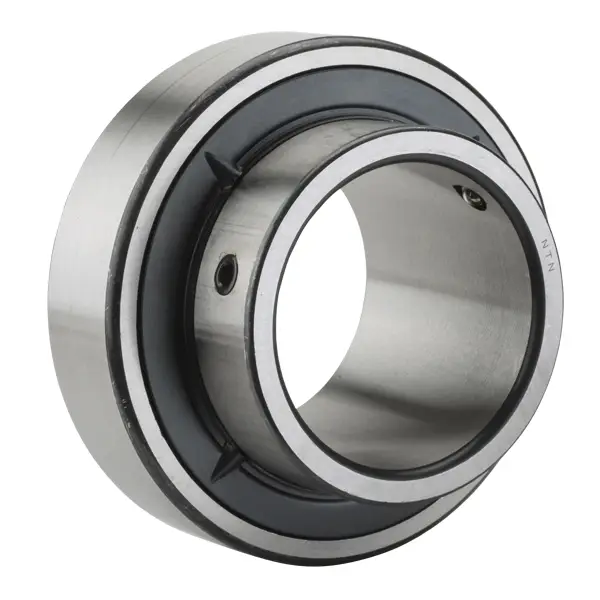

NTN UCS326D1 Set Screw Type Insert Bearing

The NTN UCS326D1 is part of the Set Screw Type Bearings - Cylindrical O.D. series within NTN insert ball bearings. It features a round bore, ball bearing construction, through-hardened steel bearing material, steel balls, and a 2-set-screw locking device arranged at 120 degrees.

What type of bearing is the UCS326D1?

The supplied data identifies the UCS326D1 as an insert ball bearing with a round bore and cylindrical outside diameter. It uses two set screws for shaft locking and is classified for heavy-duty performance in the available product specification.

UCS326D1 Dimensions and Load Specifications

  • Bore (d): 130.000 mm
  • Outside diameter (D): 280.000 mm
  • Width (C): 67.000 mm
  • Inner ring width (B): 135.000 mm
  • Fillet radius (r): 4.000 mm
  • Set screw thread (ds): M20x1.5
  • Static load rating: 214000 N
  • Dynamic load rating: 229000 N
  • Weight: 23.600 kg

What additional dimensional values are listed for this bearing?

The specification table also lists G as 20.000 mm, d4 as 178.3 mm, S1 as 81 mm, and S as 54 mm. These values should be checked against the mating assembly requirements before selection.

Sealed, Re-Lubricatable UCS326D1 Design Details

The UCS326D1 is supplied as a double-sealed bearing with contact seals made from nitrile rubber. It has CN radial internal clearance, is re-lubricatable, and has a stated operating temperature range of -40 to 120 ºC.

Which sealing and lubrication features are included?

The bearing uses a contact seal type and a double-sealed enclosure. Its re-lubricatable design allows maintenance according to the equipment lubrication procedure, while the CN radial internal clearance represents the normal clearance group identified in the product data.
