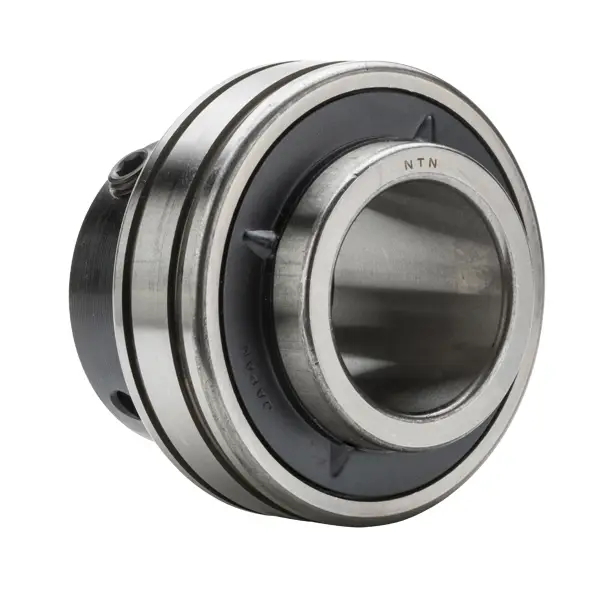

NTN UELS207LD1N
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Re-Lubricatable
Collar Number
EL207
Basic Outer Ring
207
Static Load Rating
15300 N
Dynamic Load Rating
25700 N
Enclosure
Double Sealed
Weight
0.600 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
35.000 mm
D
72.000 mm
C
20.000 mm
B
37.600 mm
B1
51.100 mm
r
1.500 mm
ds
M10x1.25
G
6.800 mm
d3
55.500 mm
B5
17.500 mm
S1
32.3 mm
S
18.8 mm
F
5 mm
r1
1.500 mm
b
2.05 mm
a
3.300 mm
D1
68.810 mm
