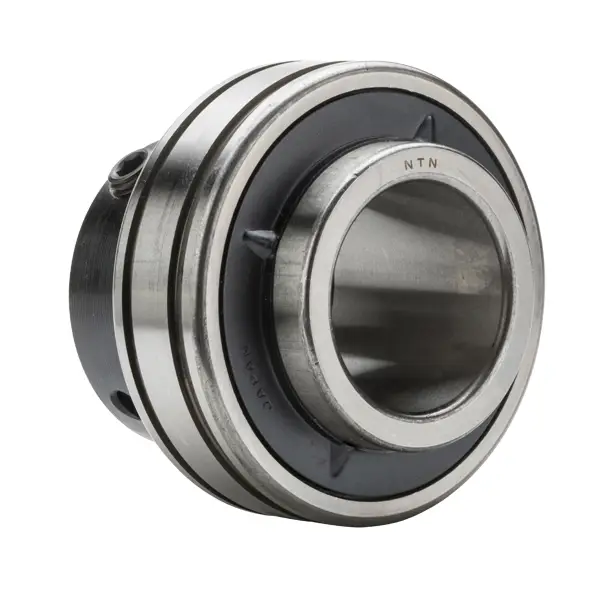

NTN UELS209LD1N
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Re-Lubricatable
Collar Number
EL209
Basic Outer Ring
209
Static Load Rating
20400 N
Dynamic Load Rating
32500 N
Enclosure
Double Sealed
Weight
0.850 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
45.000 mm
D
85.000 mm
C
22.000 mm
B
42.800 mm
B1
56.300 mm
r
1.500 mm
ds
M10x1.25
G
6.800 mm
d3
63.500 mm
B5
18.300 mm
S1
34.9 mm
S
21.4 mm
F
5.100 mm
r1
1.500 mm
b
2.05 mm
a
3.5 mm
D1
81.810 mm
