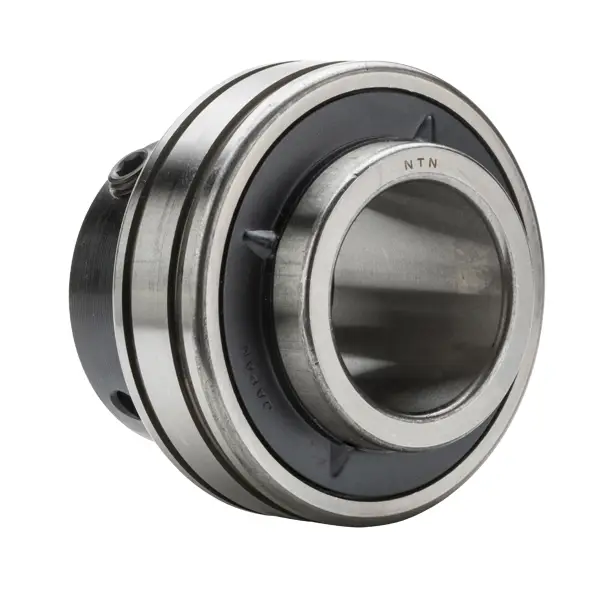

NTN UELS210-114LD1N
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL210-114
Lubrication
Relubricatable
Collar Number
EL210-114
Basic Outer Ring
210
Static Load Rating
23200 N
Dynamic Load Rating
35000 N
Enclosure
Double Sealed
Weight
1.070 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
47.625 mm
D
90.000 mm
C
24.000 mm
B
49.200 mm
B1
62.700 mm
r
1.500 mm
ds
3/8-24 UNF
G
6.800 mm
d3
69.5 mm
B5
18.300 mm
S1
38.1 mm
S
24.600 mm
F
5.600 mm
r1
1.500 mm
b
2.85 mm
a
3.700 mm
D1
86.790 mm
