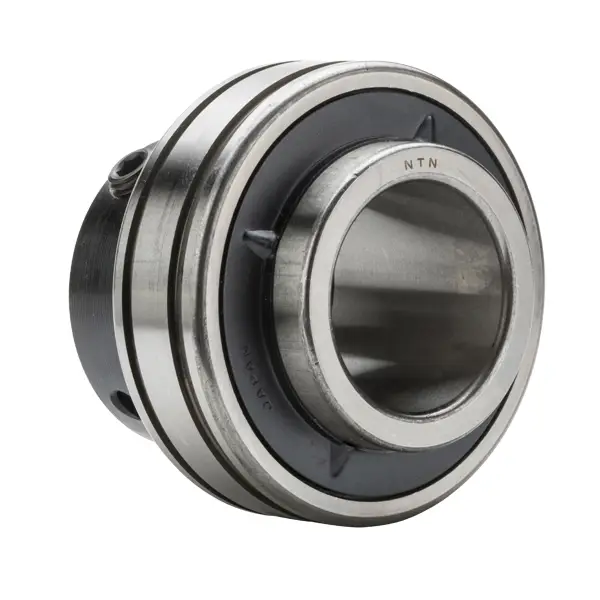

NTN UELS211LD1N
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Re-Lubricatable
Collar Number
EL211
Basic Outer Ring
211
Static Load Rating
29200 N
Dynamic Load Rating
43500 N
Enclosure
Double Sealed
Weight
1.320 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
55.000 mm
D
100.000 mm
C
25.000 mm
B
55.500 mm
B1
71.400 mm
r
2.000 mm
ds
M10x1.25
G
8.000 mm
d3
76 mm
B5
20.7 mm
S1
43.6 mm
S
27.800 mm
F
5.9 mm
r1
2.000 mm
b
2.85 mm
a
4.4 mm
D1
96.800 mm
