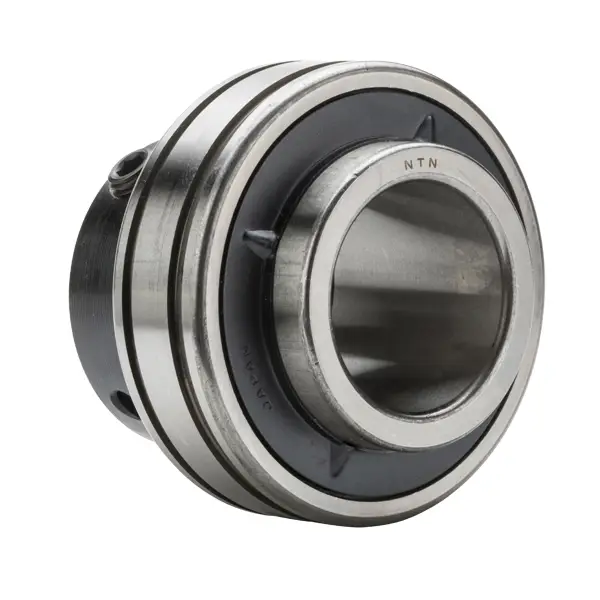

NTN UELS212LD1N
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Re-Lubricatable
Collar Number
EL212
Basic Outer Ring
212
Static Load Rating
36000 N
Dynamic Load Rating
52500 N
Enclosure
Double Sealed
Weight
1.930 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
60.000 mm
D
110.000 mm
C
27.000 mm
B
61.900 mm
B1
77.800 mm
r
2.000 mm
ds
M10x1.25
G
8.000 mm
d3
84 mm
B5
22.3 mm
S1
46.8 mm
S
31 mm
F
6 mm
r1
2.000 mm
b
2.85 mm
a
4.4 mm
D1
106.810 mm
