NTN UELS305D1
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Relubricable
Collar Number
EL305
Basic Outer Ring
305
Static Load Rating
10900 N
Dynamic Load Rating
21200 N
Enclosure
Double Sealed
Weight
0.450 kg
Operating Temperature Range
-40 to 120 ºC

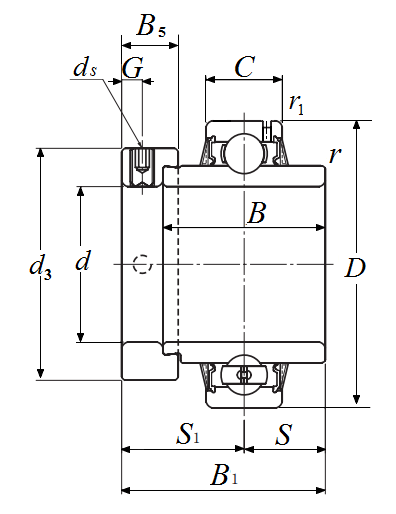

Dimensional Specifications
d
25.000 mm
D
62.000 mm
C
20.000 mm
B
34.900 mm
B1
46.800 mm
r
1.500 mm
ds
M8x1
G
6.000 mm
d3
42.800 mm
B5
15.900 mm
S1
30.100 mm
S
16.700 mm
F
4.300 mm
r1
0.600 mm
